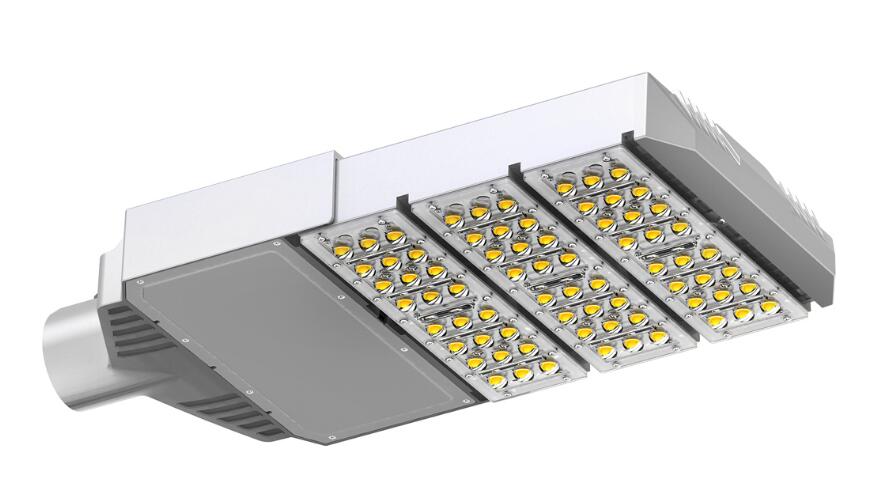

SL205 120W



PRODUCT INSTRODUCTION



MAIN SPECIFICATIONS (T=25℃)

NUMBER

ITEM

DESCRIPTION

01

Input Voltage

AC85-264V 47-63Hz

02

LED

72 PCS(1-3W/PCS) (Bridgelux Lumileds)

03

Power

120W

04

LED Efficiency

90-110Lm/W

05

Initial Flux

>12000Lm (Cool White)

>11500Lm (Natural White)

>10800Lm (warm white)

06

Power Factor

>0.95

07

Color

Warm White /Natural White/Cool White

08

Color Temperature

2700-3300K (Warm White)

4000-5000K (Natural White)

5300-7000K (Cool White)

09

Center Illuminance

3.0M286 Lux

6.0M71 Lux

9.0M31 Lux

10

Beam Angle

120°

11

Life Span

>50,000 Hours

12

Operating Temperature

-25 to +55

13

Storage Temperature

-40 to +65

14

Connect Wire

Brown  L

Blue   N

Yellow/Green  G

15

Certifications

CE, RoHS

16

Net Weight

7.5Kg

17

Size

587x292x98mm  (61mm)

18

Light IP Rating

IP66
