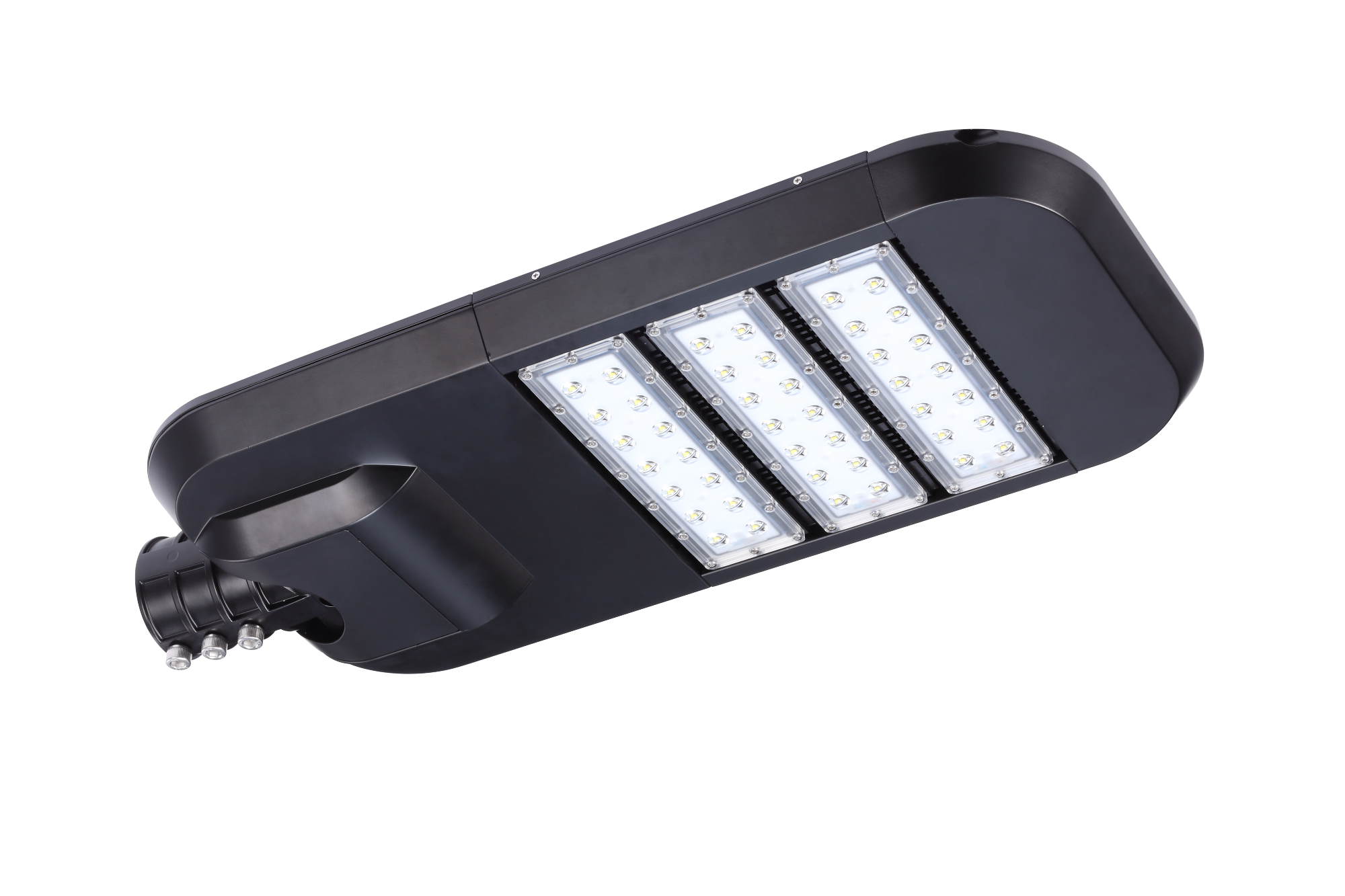

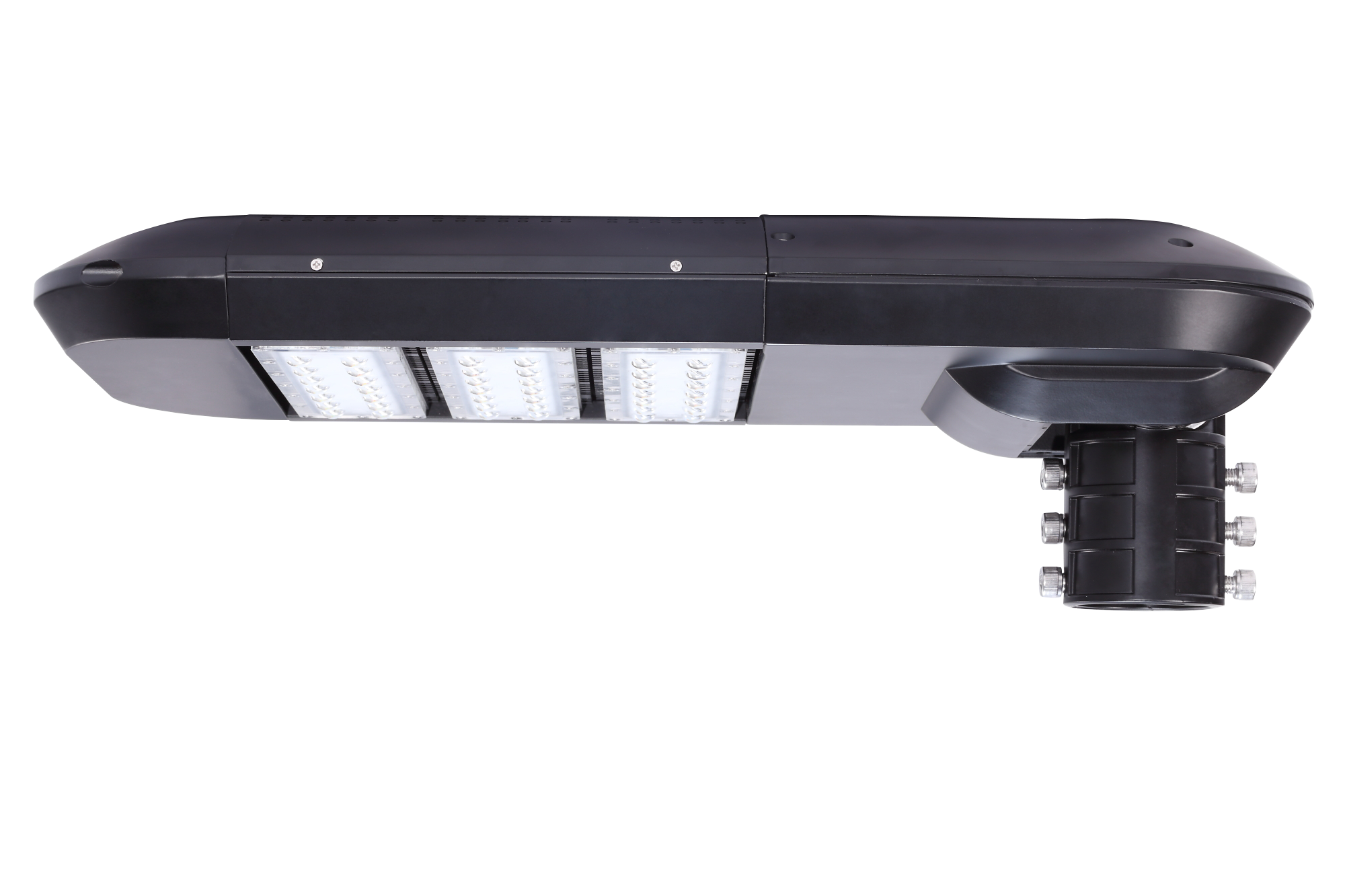

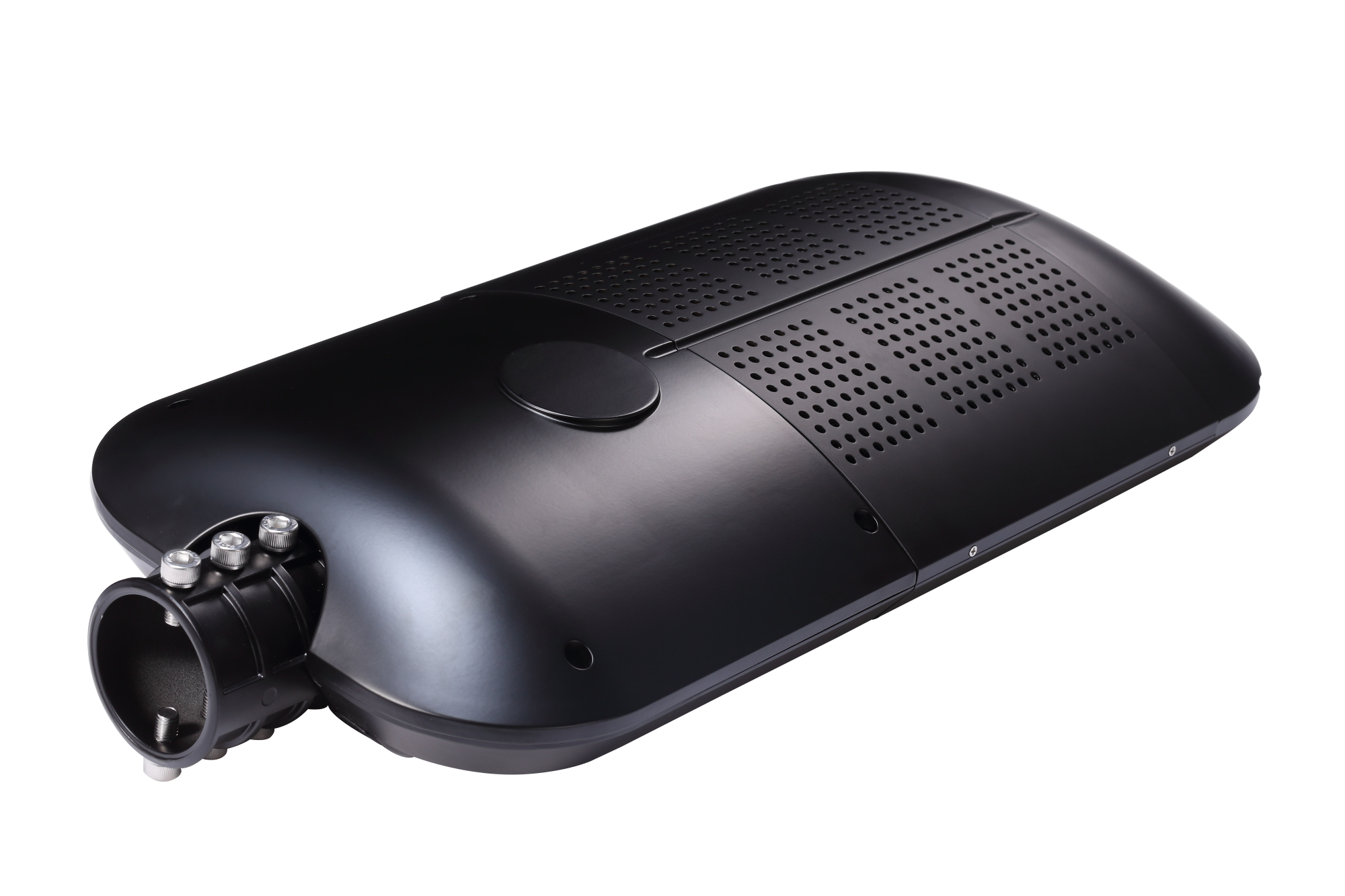

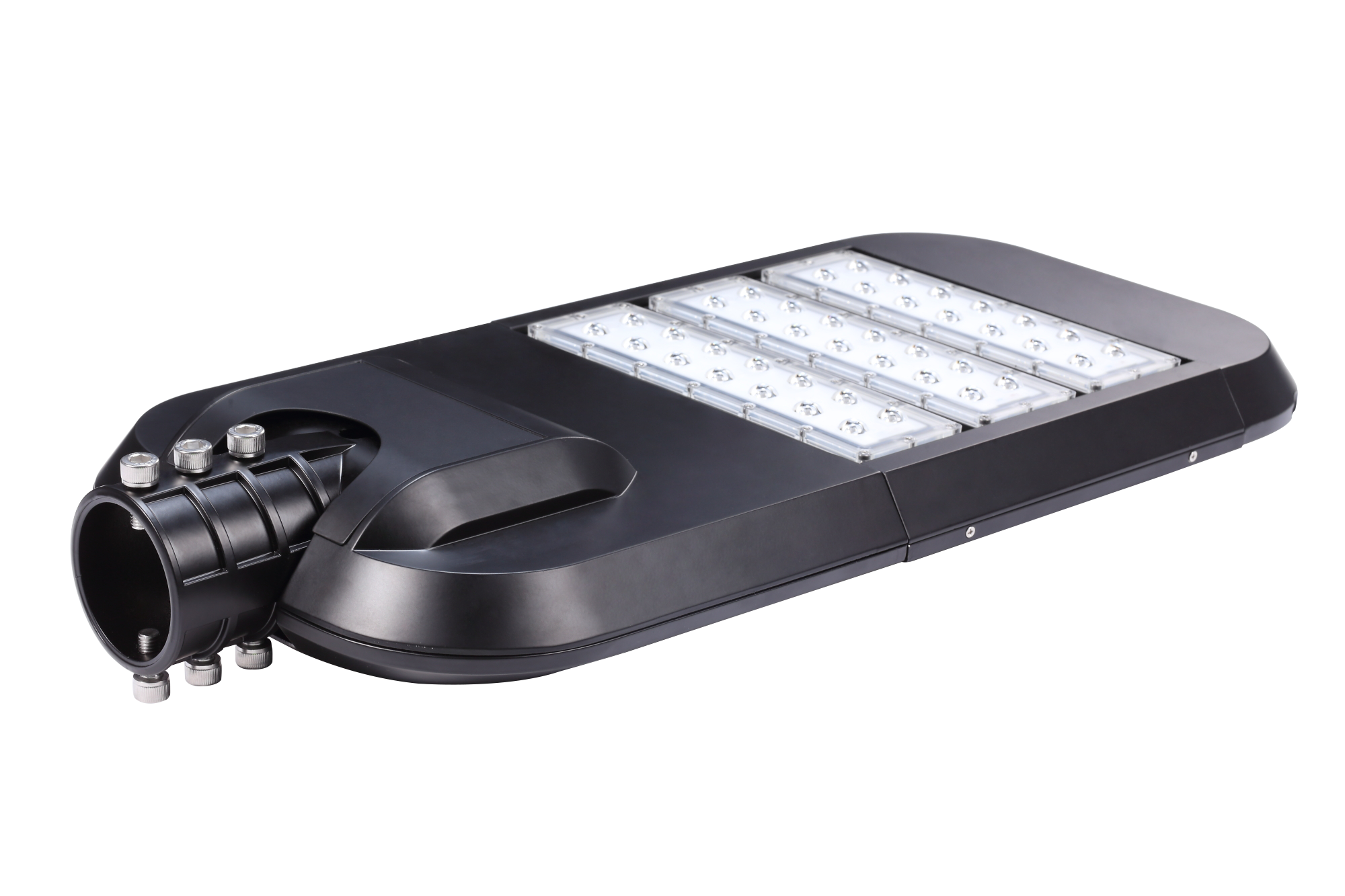

SL305-120W



PRODUCT INSTRODUCTION



MAIN SPECIFICATIONS (T=25)

NUMBER

ITEM

DESCRIPTION

01

Input Voltage

AC85-264V 47-63Hz

02

LED

42 PCS LUXEON T/ 180 PCS Philips 3030

03

Power

120W

04

LED Efficiency

170Lm/W /130lm/W

05

Driver

Meanwell

06

Power Factor

>0.95

07

Color

Warm White /Natural White/Cool White

08

Color Temperature

2700-3300K (Warm White)

4000-5000K (Natural White)

5300-7000K (Cool White)

09

IK Rating

10

10

Beam Angle

X:150° Y:75°

11

Life Span

>50,000 Hours

12

Operating Temperature

-25 to +55

13

Storage Temperature

-40 to +65

14

Connect Wire

Brown  L

Blue   N

Yellow/Green  G

15

Certifications

CE, RoHS

16

Net Weight

8.7Kg

17

Size

657x300x107mm

18

Light IP Rating

IP66

19

Warranty

5 years
